OBD II Trouble Code P0517: Battery Temperature Sensor Circuit High

What does an OBD-II P0517 code mean?

The OBD-II P0517 code is a code that is seen after scanning your vehicle's diagnostic system. An OBD-II P0517 code means that the engine control module. Generally the normal voltage reading that the ECM should be receiving should be around 5 volts.

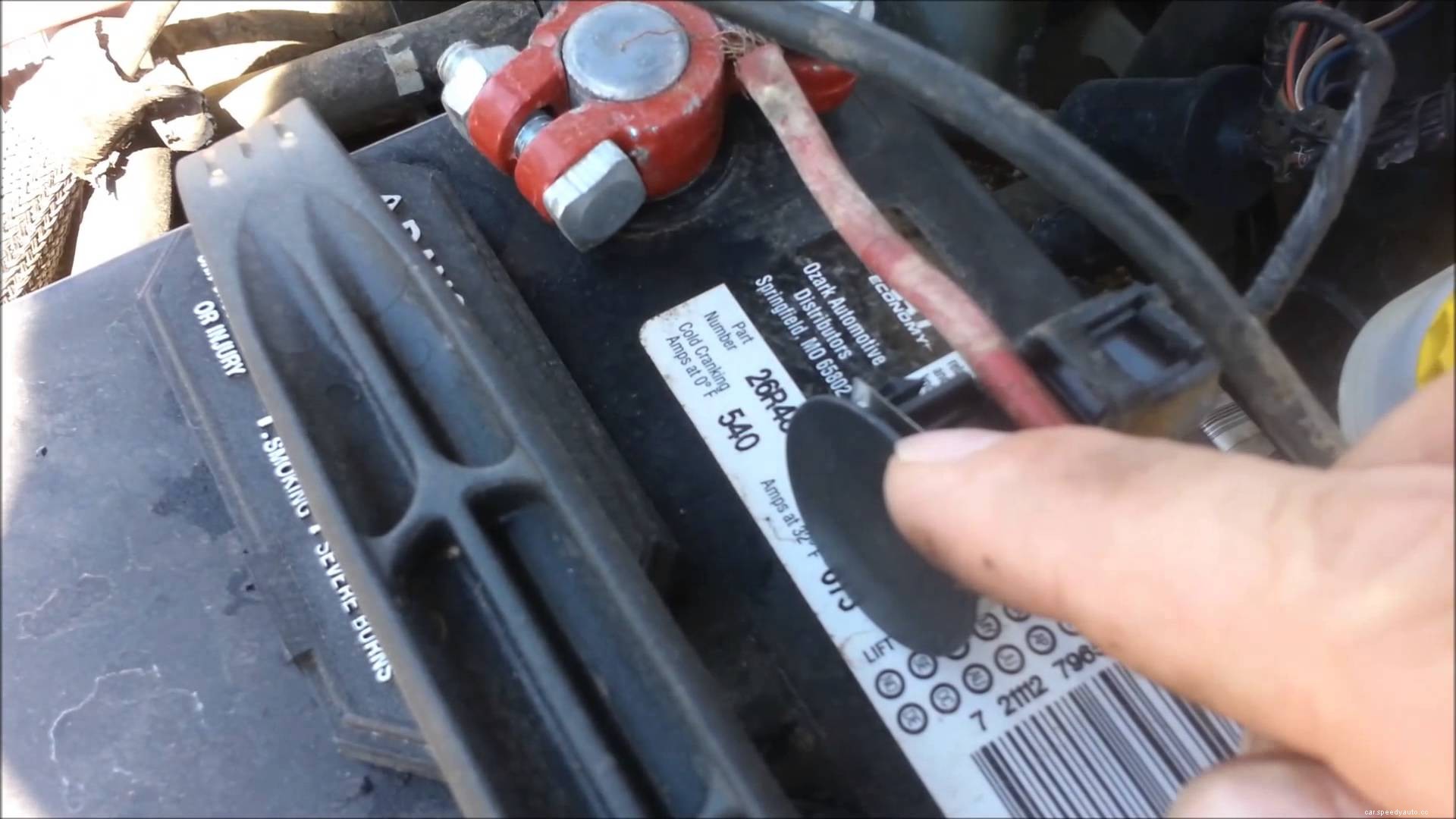

To read the battery temperature, a 5 volt reference signal is sent from the PCM to the battery temperature sensor, which is grounded through the sensor return circuit. When the battery temperature increases, it decreases the sensor resistance and the ECM will receive a voltage signal that is higher. When the battery temperature decreases, the voltage signal sent to the ECM decreases.

What triggers/causes the P0517 code?

• A faulty battery temperature sensor
• Battery corrosion
• An open or shorted battery temperature sensor
• A bad electrical connection to the battery temperature sensor
• Overheating of the engine

What can the P0517 code indicate for your car?

• Engine may experience surging
• Engine light will illuminate
• Engine may overheat
• Battery voltage may be low

How does a mechanic diagnose the P0517 code?

• Use an OBD-II scanner to check for a stored P0517 trouble code
• Visually inspect all wiring and related electrical connectors for signs of damage
• Test the battery to ensure it is fully charged
• Inspect and test electrical circuits related to the battery temperature sensor for signs of damage
• Test battery temperature sensor for a ground signal and test for a system voltage signal
• Test resistance of battery temperature sensor

Common mistakes when diagnosing the P0517 code:

In some situations, a common mistake is to actually replace the battery itself when you see this code. Normally the issue isn't with the battery itself, but is related to the sensor in the battery tray.

Is the P0517 code dangerous?

A P0517 code can cause unsafe driving conditions for the driver. As a result, it is recommended to immediately get your vehicle repaired and diagnosed.

How can you fix/remove the P0517 code?

• Repair any damaged electrical wiring or related connectors
• Repair any damaged electrical circuits
• Replace the battery temperature sensor
• Recharge or replace the battery
• Clear all codes, test-drive the vehicle, and rescan to see if any codes reappear
