Calculating Tesla Model 3 Range Loss Through a Cold Winter Night [Video]

Fig 1: Dots and line indicators on the Tesla Model 3 / Model Y center touchscreen showing how cold the battery is and the availability of regenerative braking (Source: SaskTesla / YouTube. Editing: Iqtidar / TeslaOracle.com)

As we can see in the above screenshot, the horizontal ‘dots+line’ on the Tesla Model 3 / Model Y center touchscreen indicates how cold the battery currently is and how much regenerative braking is available right now.

Since Canada uses the metric system, the car’s range is displayed in kilometers. At the time when he parked his Model 3 in snow, the car’s screen showed 362 km of range left for a Standard Range Plus Model 3 — the display indicates approximately 85% of the battery charge remaining.

After almost 15 hours of being parked in extreme cold and snow while unplugged, the Tesla Model 3 center display shows the battery’s range dropped to 318 km. If we look closely (Fig 2 below), I have indicated a portion of the battery is showing in blue color on the screen and a snowflake icon appears on the top-left information bar.

Fig 2: Snowflake icon and cold blue portion of the battery shown on the Tesla center display (Source: SaskTesla / YouTube. Editing: Iqtidar / TeslaOracle.com)

This blue portion shows that this amount of range currently cannot be utilized right now because the battery is cold. As soon as the car runs for around 15-20 mins, this blue area on the center display disappears as the battery gets all warmed up.

The Tesla Model 3 lost 44 km (9%) of range including the cold blue inactive portion of the battery, this range loss is calculated before the battery gets heated while being driven. Excluding Sentry Mode usage, the estimated loss of range is only 5% according to the owner’s estimate.

This Model 3 owner also intelligently used the Pre-Heat Cabin function from his Tesla Mobile App to heat up the interior of his car and melt any ice on the windshield. The pre-heating used around ~8 km (1.5%) of range — not bad considering the extra comfort of doing this on your phone instead of inside a frigid car.

Source: SaskTesla / YouTube

Now with the advent of the Tesla Model Y heat pump, the heat management for battery and cabin heating has become increasingly efficient. It is widely believed that the refreshed 2021 Model 3 is also being equipped with the new heat pump tech as well.

Looking at the Model 3 energy consumption graph after more than 15 minutes of driving, the car showed the projected range of 195 km left. This is around a 34% loss of range in total (including overnight Sentry Mode usage), pre-heating, and 15-20 minutes of driving in snow which requires temperature management of the battery pack.

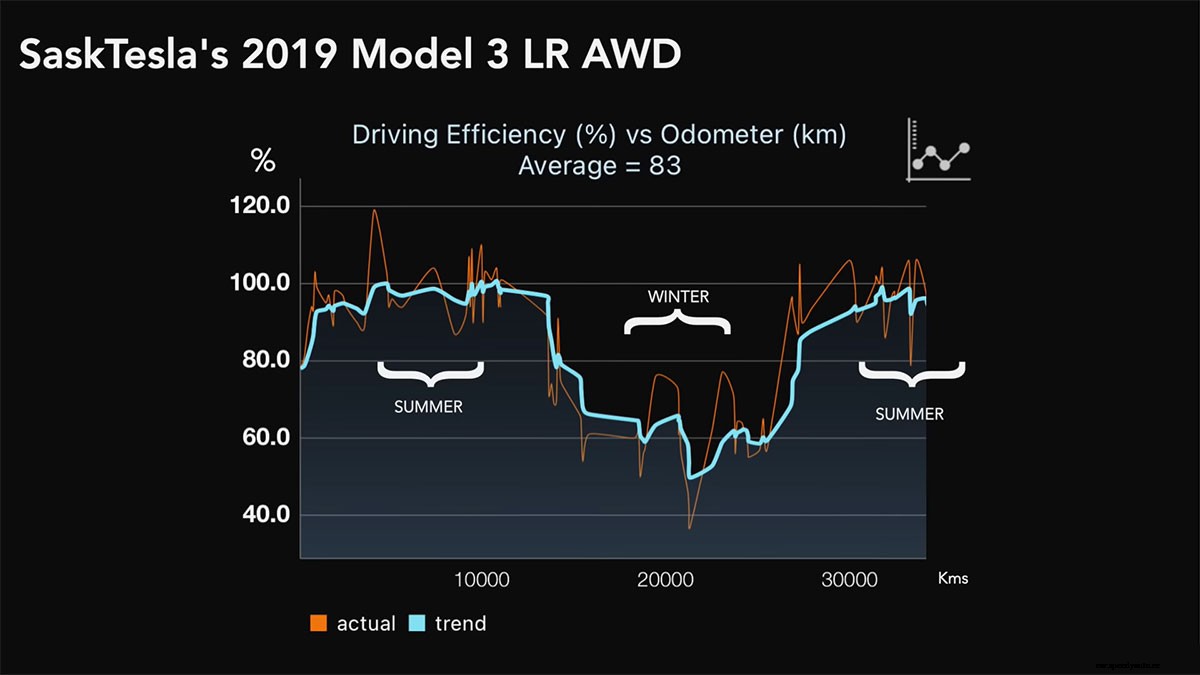

Above: Model 3 summer vs. winter range efficiency (Source: SaskTesla / YouTube)

SaskTesla collected some efficiency data from his Tesla Model 3 for the Canadian Winter and Summer and he has compiled it all into the graph (see above) to showcase the trends related to average range loss in a Tesla Model 3 contingent on weather.

===

Written by: Iqtidar Ali. An earlier version of this article was originally published on Tesla Oracle.
