Here is the complete information on each and every symbol related to warning and indicator lights including how to react to a certain when a warning symbol flashes, however, you can get the Mazda 6 dashboard symbols manual at the end of the page if you need more info.

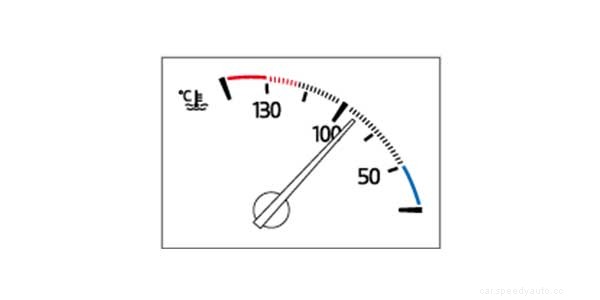

Displays the engine coolant temperature. The blue gauge indicates that the engine coolant temperature is low, and the red gauge indicates that the engine coolant temperature is high and overheating.
Overheating
If the engine coolant temperature gauge needle is in the red range, there is the possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.
Note: During normal driving, the engine coolant temperature stabilizes at 100 °C (210 °F) or less, and the gauge indicates a range lower than 100 °C (210 °F).
The maintenance period notifications can be displayed by turning the Maintenance Monitor on.
When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.
The remaining amount of AdBlue® and the remaining distance-to-empty indications are displayed when the ignition is switched ON.
Note: If the remaining amount of AdBlue® is low or there is a problem with the Selective Catalytic Reduction (SCR) system and there is less maximum remaining driving distance, the remaining-distance-to-empty indication is continuously displayed.

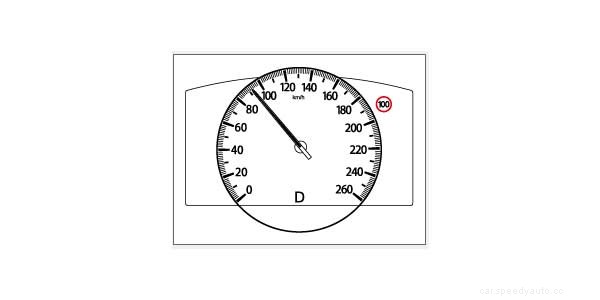

Displays the traffic sign.
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display (Some Models)

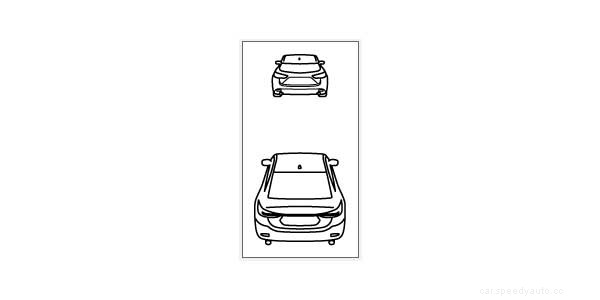

Displays the distance between your vehicle and the vehicle ahead.

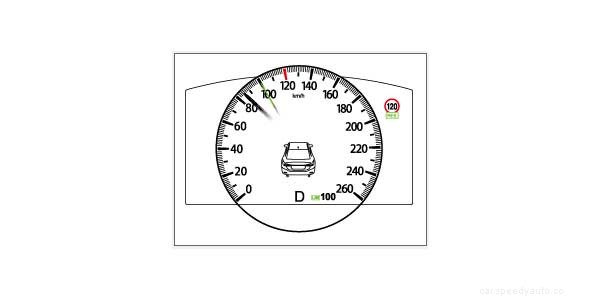

The setting status of the Intelligent Speed Assistance (ISA) is displayed.
The wrench indication is displayed under the following conditions.
(SKYACTIV-D 2.2)
When the ignition is switched ON, the glow indicator light turns on. The glow indicator light turns off when preheating is finished.
A problem in the system might be indicated under the following conditions.
More: Dashboard symbols of Ford, Toyota, Nissan, Honda, and Chevrolet can be found by clicking here..
The light turns on when the ignition is switched on for an operation check and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected by an expert repairer, we recommend an Authorized Mazda Repairer.
The light turns on when the ignition is switched on for an operation check and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an expert repairer, we recommend an Authorized Mazda Repairer.
The light turns on continuously when the parking brake is applied.
