How to Fix P1101 Chevy Malibu?

“Mass Airflow Sensor out of Self-Test Range” is a diagnostic problem code (DTC) P1101. This can happen for a variety of reasons, and a mechanic will need to figure out what caused the code to be activated in your case.

P1101 code definition

When the Powertrain Control Module (PCM) identifies a failure in the Mass Air Flow (MAF) sensor system, a P1101 trouble code is stored. P1001, P1100, P1102, P1103, P1104, and P1105 are examples of related codes that the PCM may record with a P1101 issue code.

What is the reason for the P1101 error code?

A malfunctioning MAF sensor, broken connections or wiring inside the MAF sensor harness, and an air leak either before or after the MAF sensor are all probable reasons for a P1101 error code. The storing of this code might also be caused by a bad electrical connection inside the MAF sensor circuit.

• The faulty or defective electrical connection in the MAF sensor
• Disconnected, damaged, or corroded wiring in the MAF sensor
• Leaks downstream of the MAF sensor
• Contamination of MAF sensor elements, such as oil contamination
• Faulty or defected MAF sensor
• Faulty PCM (this is the rarest cause of P1101 and it should be checked as the last resort if the error persists after fixing the other possible causes)

What are the P1101 code’s symptoms?

Poor engine performance, as seen by an unpredictable performance at starter, rough idling, and reduced vehicle power while in operation, are all signs of a P1101 problem code, in addition to the code storage and eventual flashing of the check engine light. A vehicle with a stored P1101 issue code may also have a decrease in fuel economy.

• Illumination of the check engine light or the “service engine soon” light
• Delayed pickup time
• The engine runs below the average performance
• High rate of fuel consumption
• Rough idling

How does a mechanic diagnose the P1101 code?

To diagnose a P1101 trouble code, a mechanic needs to use an OBD-II scanner and a digital volt/ohm meter. In addition, the mechanic should perform the following steps:

• Visually inspect the wiring of the MAF sensor harness. The mechanic should likewise check out the wiring, connectors, and components associated with the MAF system.
• Check the air filter for debris to make sure the flow of air is not obstructed.
• After making any necessary replacements or repairs, clear the trouble code, and test the system to see if the code returns.
• If the code returns, the mechanic should download any freeze frame data on the PCM in addition to all stored trouble codes.

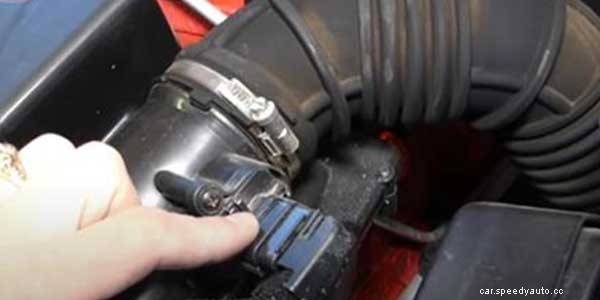

• The mechanic should carefully remove the MAF sensor to see if it is dirty.
• Next, the mechanic should perform a smoke test to check for any leaks before or after the MAF sensor within the vacuum system.
• If no leaks are detected or the code returns after fixing any leaks and clearing the code, test the MAF sensor for reference voltage and ground signal using the digital volt/ohm meter.
• If no voltage or ground signal is detected, first disconnect the PCM and all related control modules, and then check the continuity of the MAF sensor and all related circuits for continuity with the battery ground.
• The mechanic can also check the continuity between the MAF sensor and the PCM, as well as the continuity between the various control modules and the PCM.
• As a final step, clear the P1101 trouble code and retest the system to see if the code returns.

Related:

Chevy Cruze Turbo Problems

P0332 Code Chevy Silverado

What Does It Mean When The Check Engine Light Comes On In A Chevy Malibu?

What is the significance of the P1101 code?

While a P1101 fault code does not normally prevent a vehicle from operating, it might cause the engine to run rough, lose power, and even waste more gasoline. This code should be rectified as quickly as possible because driving with it stored for an extended period of time might create internal engine difficulties.

How to Fix P1101 Chevy Malibu?

A mechanic must follow the procedures below to correctly fix and clear a P1101 fault code:

Within the MAF sensor harness, replace or repair any broken, damaged, or loose wire, connections, or components.

If the air filter is dusty, clean it or replace it.

Using a specialist cleaner, clean the MAF sensor. Before reinstalling the sensor, make sure it’s totally dry.

Any vacuum system leaks should be repaired.

If the MAF sensor still does not operate correctly after cleaning it, replace it.

If any problematic control modules, including the PCM, test as “bad,” replace them. The mechanic must reprogram the PCM when it is replaced.
