The car’s battery is one of the most vulnerable items. It can drain very quickly and can be very expensive to replace. Moreover, a weakening car battery can give rise to many problems, such as delayed ignition, dim lights, etc.
It’s necessary to test your car battery frequently. While there are many ways to check the status of a car’s battery, one of the best options is to use a multimeter. You can also check the battery’s status with a battery tester or an OBD scanner that offers a battery testing feature. However, if you want to keep it old school, then here’s how to test a car battery with a multimeter:
Note: A healthy battery will show a voltage of 12.6 volts on the multimeter.Table of Contents
Before you test your battery, make sure you are wearing gloves so that your hands don’t get messy. Avoid wearing anything made up of metal, including rings and chains. They can cause you to get injured.
Dry your body, especially your hands, carefully. Also, ensure the surrounding is dry, especially the ground. Do not test the battery if it’s too hot. Allow it to cool before testing it out.

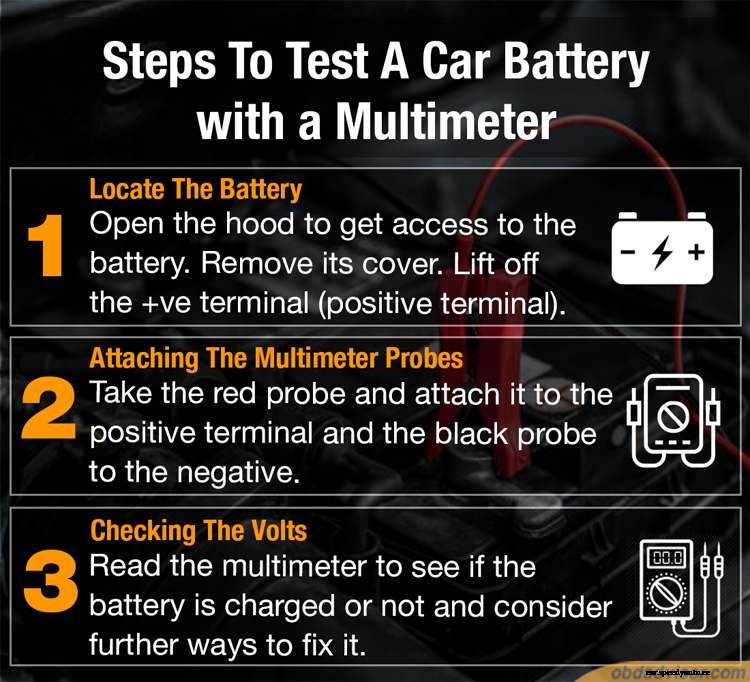

Here are three simple steps to perform a car battery voltage test:
The battery is kept in the engine bay at the side of the engine. Therefore, you need to open the hood to get access to it.
Once you find the battery, remove its cover. In some modern cars, there’s a plastic wrap on the battery for protection. It can come out with a little pull. However, in some cases, there may be some screws. Remove them, and you’ll be able to access the battery.
After removing the cover, you’ll find two terminals on the battery: a positive (+ve) terminal and a negative terminal (-ve). The +ve terminal typically has a red cover that you will have to lift off.
Once you can access the terminals, it is time to make a connection. Take the red probe and attach it to the positive terminal and the black probe to the negative. If you do it wrong, the multimeter will show a voltage of -12.6 rather than 12.6. If it does, inter-swap the probes.
As you attach the probes, the multimeter will display a reading. Here is how to test a car battery and see if it is charged or not:
If it shows volts below 12.6v, pull it out and charge it with a battery charger or take it to a professional.

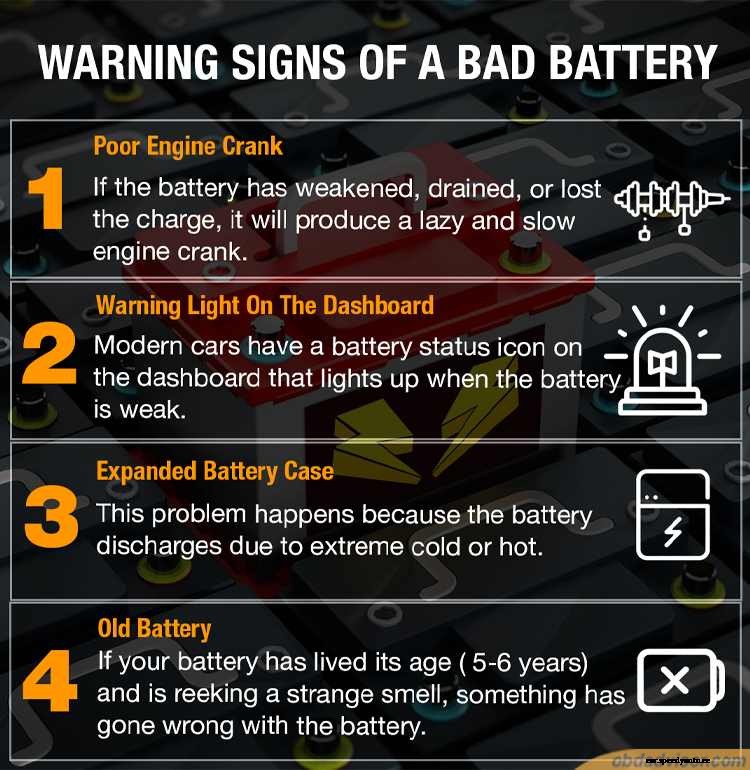

Many warning signs will tell you if there’s something wrong with your car’s battery:
When you turn the key to start the ignition, it is the battery that ignites the engine. However, if the battery has weakened, drained, or lost the charge, it will produce a lazy and slow engine crank.
On the other hand, a healthy battery will turn the engine on in one go and only produce a rapid clicking sound.
Modern cars have a battery status icon on the dashboard that lights up when the battery is weak. It can help you judge the status of the battery. However, when the battery light is on, it doesn’t mean that your battery must have gone bad. There may be a problem with the connection or some electrical component.
A battery works by triggering a chemical reaction in its box. Sometimes, outside elements such as heat or cold, a lack of charge can cause the battery’s walls to expand. We see this in TV remotes as well. When we do not use the remote for a long time, the battery often gets swollen. This problem happens because the battery discharges due to extreme cold or hot. The same is the case with a car battery.
The lifespan of a battery is 5-6 years. If it has lived its age and is reeking a strange smell, something has gone wrong with the battery, and it needs replacing.
It is crucial to keep the battery in good shape. When you keep your battery well maintained, it will run smoothly and longer and provide enough juice to power all electrical components efficiently.
It is an excellent choice to check your battery’s status with a multimeter. The process is straightforward and only takes a few seconds
