One of the most important — and most overlooked — maintenance items on a Honda Acty is the timing belt. It may not look like much, but this small component keeps the camshaft and crankshaft perfectly synchronized. On many Acty models equipped with the E07A or E07Z engine, a failed belt can lead to piston-to-valve contact and major repairs. Here’s everything you need to know about Honda Acty timing belt replacement before it becomes an expensive problem.
The timing belt on a Honda Acty plays a critical role inside the engine. In simple terms, it keeps the crankshaft and camshaft perfectly synchronized. Many Honda Acty trucks — especially those equipped with the E07A and later E07Z 660cc engines — use what’s known as an interference engine design. This means the pistons and valves operate in the same space inside the cylinder, just at different times. The only thing preventing them from colliding is proper timing. When the timing belt breaks:
This piston-to-valve contact can bend valves, damage pistons, and in severe cases require a full engine rebuild or replacement. What could have been a routine maintenance job turns into a costly repair.

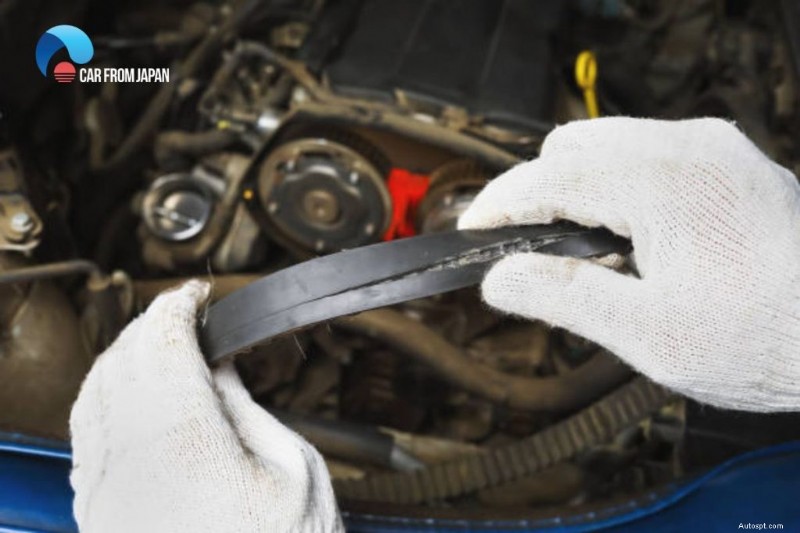

The timing belt on a Honda Acty plays a critical role inside the engine. (Photo: istockphoto)
That’s why preventive timing belt replacement is so important on the Honda Acty. The belt itself is relatively inexpensive compared to the potential damage it prevents. Given the age of most imported Acty trucks today, replacing the timing belt before it fails is one of the smartest maintenance decisions an owner can make.
The short answer is no — it’s not a design flaw. The timing belt system used in the E07A and E07Z engines is typical for small Japanese engines of that era. When maintained properly and replaced at recommended intervals, it’s generally reliable. Most timing belt failures on the Honda Acty come from:
Like any rubber timing belt, it has a service life. Once that interval passes, the risk increases significantly.
Even if the truck hasn’t been driven much, the rubber breaks down over time. Cracks, hardening, and internal wear can develop simply due to age.
Many Actys in the U.S. are imported used from Japan. Documentation isn’t always complete, and buyers often don’t know when — or if — the belt was last replaced.
Another important factor is age. Most Honda Acty trucks available today are 20 to 30+ years old. At that point, the belt’s age becomes a bigger concern than mileage alone. A low-mileage truck is not automatically safe if the timing belt has never been changed.
Many Actys in the U.S. are imported used from Japan (Photo: istockphoto)
For most Honda Acty models equipped with the E07A or E07Z engine, a common guideline is to replace the timing belt at around 100,000 kilometers (roughly 60,000 miles). This aligns with typical service recommendations for similar Honda kei engines from the same era.
The Honda Acty timing belt replacement isn’t unusually complex, but it does require careful alignment and mechanical attention. At a high level, the process involves:
Removing necessary components to expose the timing belt assembly.
This ensures the engine is in the correct position before the old belt is removed.
Both the crankshaft and camshaft timing marks must line up precisely to maintain proper synchronization.
Since the water pump is driven by the timing belt on many Acty engines, replacing it at the same time prevents future labor duplication.
After installing the new belt, the engine is rotated manually to confirm that timing marks remain properly aligned.
This isn’t a step-by-step repair manual, but it gives you a clear picture of what’s involved.
One of the biggest concerns for owners is cost. The good news is that a Honda Acty timing belt replacement is usually affordable — especially compared to the price of engine damage from a failed belt.
If you plan to do the job yourself, your main expense will be parts. A typical timing belt kit may include:
Depending on the supplier and whether you choose OEM or aftermarket components, parts typically range from $100 to $300. Pricing can vary based on generation and availability, but overall, the parts themselves are relatively inexpensive.
Many experienced owners recommend replacing the water pump and tensioner at the same time, even if they aren’t currently failing. Since these components are accessed during the same repair, replacing them now prevents paying for the same labor twice later.
Many Actys in the U.S. are imported used from Japan (Photo: carfromjapan.com)
If you choose to have a mechanic perform the work, labor becomes the largest part of the bill.
Expect: Several hours of labor due to engine access and precise timing alignment
The total cost typically ranges between $500 and $1,000, depending on shop rates and location.
When it comes to the Honda Acty timing belt, prevention is everything. The belt itself is not unusually problematic, and it’s not a known design flaw. But because many Acty trucks are now over 20–30 years old, age and unknown service history make proactive replacement a smart decision.
A timing belt job may cost a few hundred dollars. Engine damage from a broken belt can cost several thousand dollars or require a full engine replacement.
